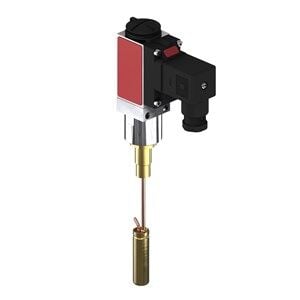

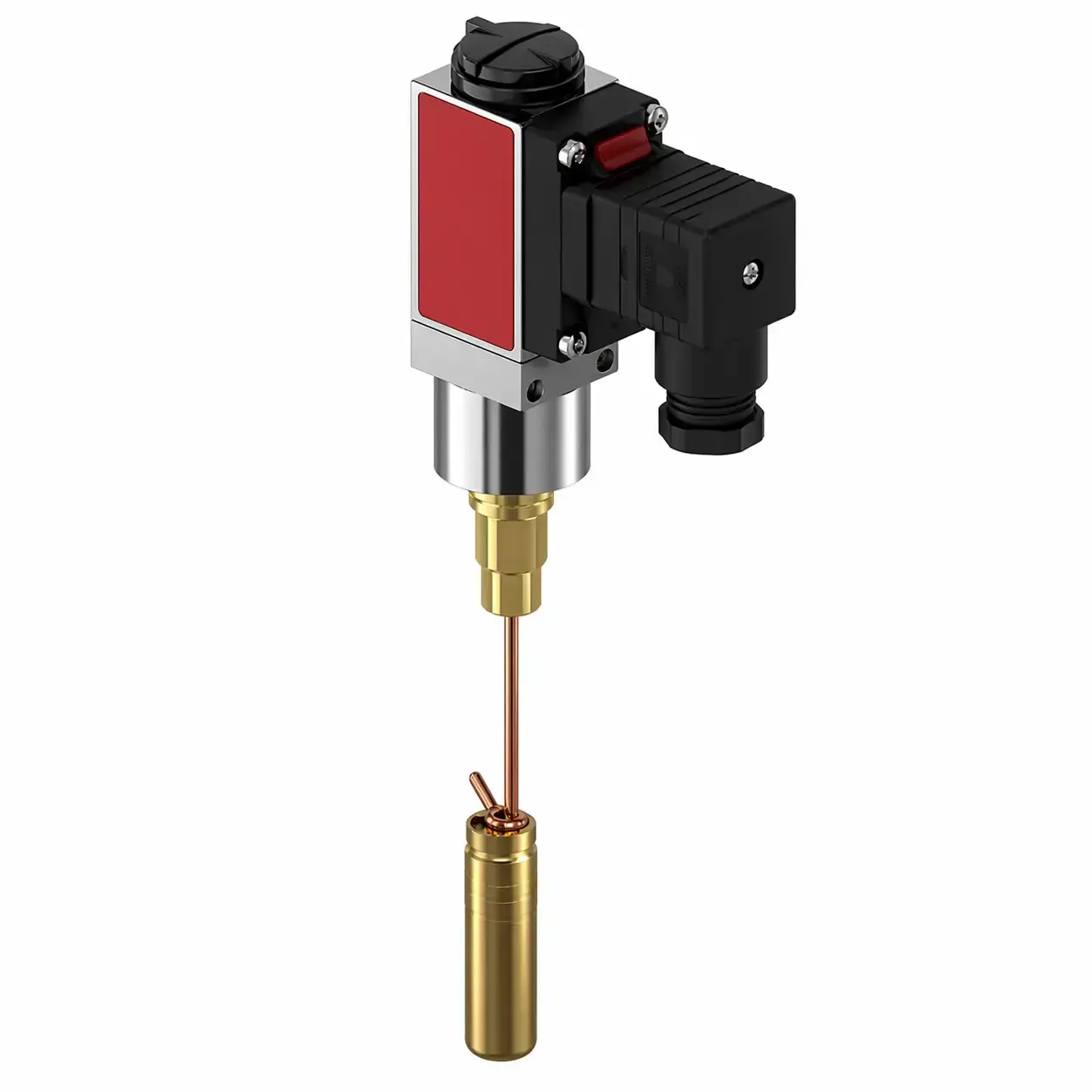

Danfoss MBC8100 061B800466 Thermostat

THERMOSTAT

Gross Weight: 0.594 kg
Net Weight: 0.281 kg
Volume: 3.421 Liter
EAN: 5702423218745

THERMOSTAT SPECIFICATIONS

• Serviceable: No
• China RoHS Compliance: Yes
• Electrical Connection: DIN plug
• Electrical Connection Size: Pg 11
• Electrical Connection Gender: Female
• Electrical Connection Standard: EN 175301-803-A
• Electrical Feature Standard: EN 60947-5
• EU RoHS Compliance: Out of scope
• Differential (FS) [K]: 5 K
• Differential Type: Fixed (max. value)
• In scope of WEEE and contains batteries: No
• Contact Rating: AC15=0.5 A, 250 V / DC13=12 W, 125 V
• Contact Function: SPDT
• Protection Class IP: IP65
• Max. Sensor Temperature [°C]: 220 °C
• Max. Sensor Temperature [°F]: 428 °F
• Approvals:
  ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LLC CDC EURO-TYSK, LR, LVD, NKK, RINA, RMRS, RoHS, China RoHS, TYSK, UKCA

Ambient Temperature Range:

• Max [°C]: 70 °C
• Min [°C]: -40 °C
• Max [°F]: 158 °F
• Min [°F]: -40 °F

Product Name Description: Thermostat
REACH Candidate List Substances: Lead (CAS no. 7439-92-1)
Reset Function: Automatic
SCIP File No.: 78250f8e-5849-44ad-ae3b-a65731351f9b

Sensor Dimensions (Ø x L): 1/2 x 2 in / 13 x 50 mm
Sensor Type: Rigid Sensor
Min. Sensor Pocket Length: 3 in / 75 mm

Temperature Range:

• Max [°C]: 120 °C
• Min [°C]: 70 °C
• Max [°F]: 248 °F
• Min [°F]: 158 °F

Type: MBC 8100
UK RoHS Compliance: Out of scope
Socket or Tube Connection: M 18 x 1.5
Load Type: Adsorption
Feature Description: 2411-1A00075
Product Accessories: Switch accessories
Product Description: Thermostat
Product Group: Switches and thermostats
