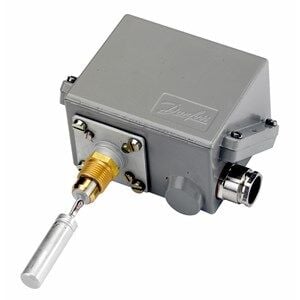

Danfoss KPS81 060L311066 TERMOSTAT

Danfoss KPS81 060L311066 Thermostat is a heavy-duty limit thermostat designed to provide temperature control within a range of 60–150 °C. With its SPDT gold contact configuration and automatic reset function, it ensures system safety during overheating conditions. Thanks to its IP67 protection class, it is resistant to moisture, dust, and water splashes. The rigid sensor and metal cable gland allow for easy installation. The thermostat can be used in applications where the bulb temperature reaches up to 250 °C, and the temperature differential can be adjusted by the user between ≈ 5–25 °C. It is ideal for use in marine applications, boiler systems, industrial furnaces, and cargo vessels, where high temperatures and harsh environmental conditions are present.

THERMOSTAT SPECIFICATIONS

Gross weight: 0.948 kg
Net weight: 0.802 kg
Volume: 3.55 L
EAN: 5702423147649

ELECTRICAL CONNECTION

• Type: Screw cable entry

• Size: Pg 13.5

• Connector type: Female

• Standard: DIN 40430

• Remarks: Metal cable gland

• Electrical standard: EN 60947-5

EN 60947 electrical ratings:

• Insulation: 400 V

• Pollution degree: 3

• Nominal impulse voltage: 4 kV

• Short-circuit protection (fuse): 16 A

Cable specifications:

• Cord with ferrule: 0.5–1.5 mm²

• Cord without ferrule: 0.7–2.5 mm²

• Solid/stranded: 0.75–2.5 mm²

PERFORMANCE & ENVIRONMENTAL DATA

• Differential type: Adjustable

• Differential range: 5 – 25 °C (5 – 25 K)

• Maximum sensor temperature: 250 °C / 482 °F

• Temperature range: 60 – 150 °C / 140 – 302 °F

• Ambient temperature: −40 … +70 °C (up to 80 °C for max 120 min)

• Protection class: IP67

• Sensor type: Rigid sensor (Ø 13 mm × L 63 mm)

• Sensor pocket length (min): 200 mm (7 7/8 in)

• Connection thread: M 18 × 1.5

ELECTRICAL CONTACTS

• Function: SPDT (gold contacts)

• Ratings:

  • AC-15 = 4 A, 440 V

  • AC-1 = 10 A, 440 V

  • AC-3 = 6 A, 440 V

  • DC-13 = 12 W, 220 V

  • For gold: 1–30 mA, 5–30 V

APPROVALS & COMPLIANCE

• Approvals: ABS, BV, CCC, CCS, CE, DNV, EAC, GL, LR, RINA, RMRS, UKCA, UL, and others

• Ingress protection: IP67

• RoHS (EU/China): Out of scope

• REACH SVHC: Lead (CAS 7439-92-1)

• Reset function: Automatic

• Product type: Thermostat

• Group: Switches and thermostats

• UL file number: E73170

• SCIP number: 84be8326-1b95-4f87-afb0-90ae08b65f06
