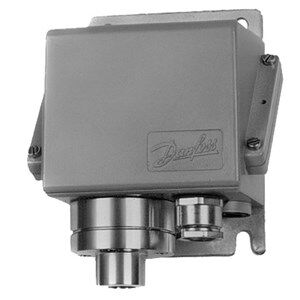

Danfoss KPS47 030-312266 PRESOSTAT

The Danfoss KPS47 060‑312266 pressure switch provides high-performance pressure control with an adjustment range of 6–60 bar. With a differential pressure range of 3.5–17 bar, the switch can be used for overpressure alarms or control in various industrial applications. Its automatic reset function and SPDT gold contact design protect the system and reduce unnecessary manual interventions.

PRESSURE SWITCH

The device features an IP67 protection rating; its dust- and water-resistant body allows operation in harsh field conditions. The maximum operating pressure is 120 bar, and the test pressure ensures durability up to 180 bar. The connection is G 1/4″ threaded, with a cable connection via a metal gland. Operating temperature ranges from −25 °C to +70 °C, and the device is especially resistant to vibration and shock, making it suitable for ships, power plants, compressors, and industrial pipelines.

SPECIFICATIONS

• Gross weight: 1.24 kg

• Net weight: 1.125 kg

• Volume: 2.43 L

• EAN: 5702423146956

• Pressure sensing element: Diaphragm

• Pressure connection size: 1/4″

• Pressure connection standard: ISO 228-1

• Pressure connection type: G

• Pressure male/female: Female

• China RoHS compliance: Yes

• Electrical connection: Screw cable entry, metal gland

• Electrical connection size: Pg 13.5

• Electrical connection standard: DIN 40430

• Contact function: SPDT gold

• Protection class: IP67

• Max. test pressure: 180 bar

• Max. operating pressure: 120 bar

• Approvals: ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LLC CDC EURO-TYSK, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK, UKCA, UL

• Operating temperature: −25 °C to +70 °C (short-term +80 °C for 120 min)

• Burst pressure: 240 bar

• Regulation range: 6–60 bar

• Differential range: 3.5–17 bar

• Automatic reset: Yes

• Product type: Pressure switch

• Product group: Switches and thermostats
