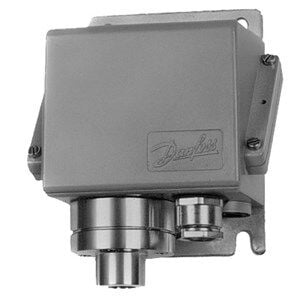

Danfoss KPS43 060-312066 PRESOSTAT

Danfoss KPS43 060‑312066 Pressure Switch provides precise pressure control with a 1–10 bar setting range and a differential pressure range of 0.70–2.80 bar. Thanks to its automatic reset function, circuit interruption and reactivation occur automatically. Its high-strength body, IP67 protection class, and 120 bar operating pressure ensure reliable performance in both indoor and outdoor environments.

PRESSURE SWITCH

This model features a solid electrical connection via a metal cable gland; the SPDT gold contact ensures high conductivity and long service life. It operates in temperatures from −25 °C to +70 °C and can withstand short-term exposure up to +80 °C.

Suitable applications include compressors, power plants, marine installations, pumping stations, and heavy industry. Its high pressure resistance and wide pressure range make it ideal for safety and control applications.

Specifications:

• Gross weight: 1.202 kg

• Net weight: 1.103 kg

• Volume: 2.456 L

• EAN: 5702423146932

• Pressure sensing element: Diaphragm

• Pressure connection: 1/4″ G female, ISO 228‑1

• Electrical connection: Screw cable entry, Pg 13.5, female, DIN 40430, metal cable gland

• SPDT gold contact

• Electrical ratings:

  • AC15=4 A, 440 V

  • AC1=10 A, 440 V

  • AC3=6 A, 440 V

  • DC13=12 W, 220 V

  • LR max 50 A

  • Gold contact: 1–30 mA, 5–30 V

• Differential pressure range: 0.7–2.8 bar (10–41 psi)

• Maximum operating pressure: 120 bar (1740 psig)

• Maximum test pressure: 180 bar (2611 psig)

• Burst pressure: 240 bar

• Automatic reset function

• Ambient temperature range: −25 °C to +70 °C (short-term up to +80 °C)

• Protection class: IP67

• Approvals: ABS, BV, CCC, CCS, CE, CMIM, DNV, EAC, GL, KRS, LLC CDC EURO‑TYSK, LR, LVD, NKK, RINA, RMRS, RoHS (EU & China), TYSK, UKCA, UL

• REACH candidate list: Lead (CAS 7439‑92‑1)

• Product type: KPS43

• International product number: 060‑312066

• Accessories: Switch accessories

• Product group: Switches and thermostats
