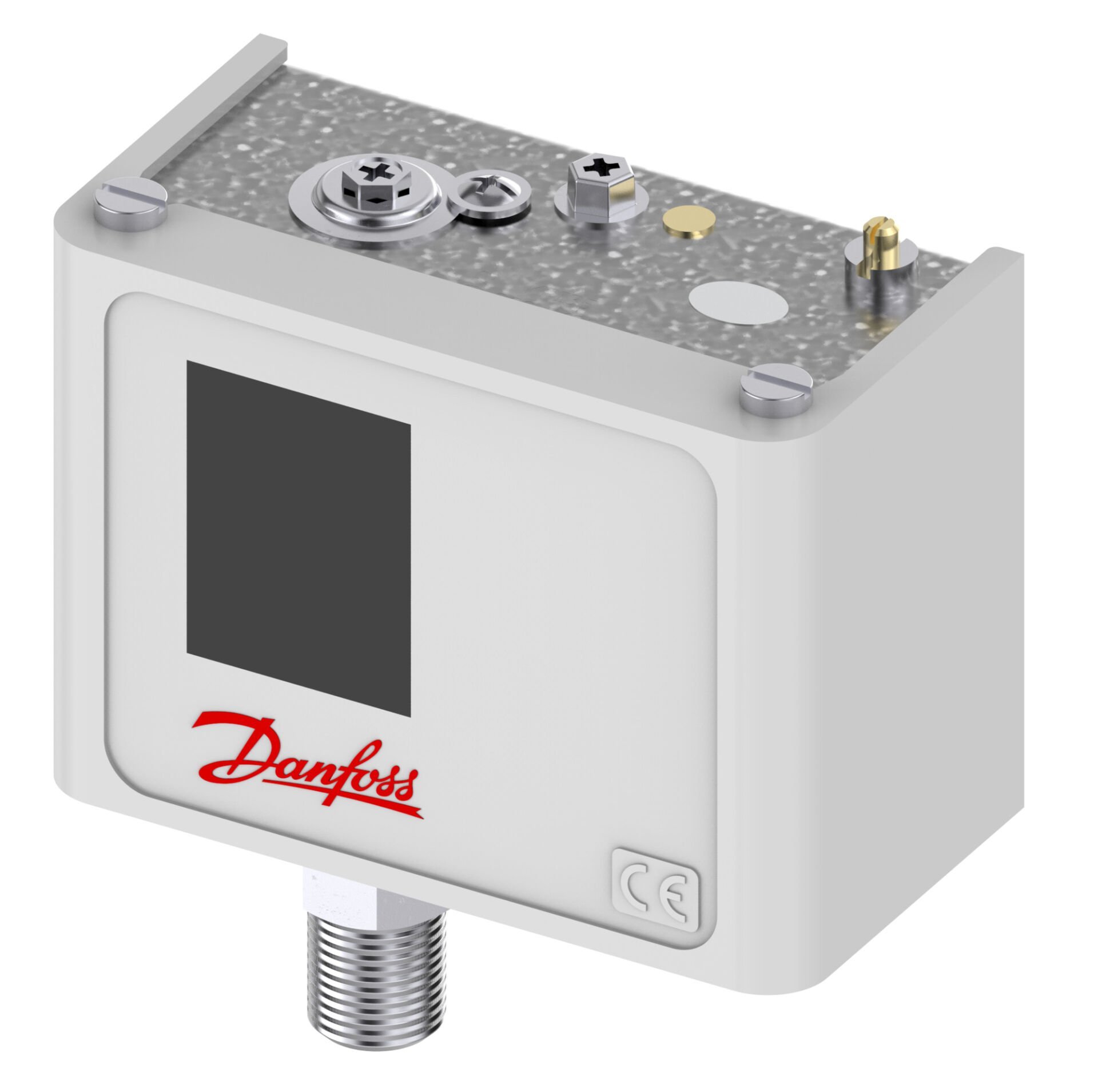

Danfoss KPI38 Pressure Switch 8-28 bar
Pressure Switch (Prosestat)
Gross Weight: 0.34 kg
Net Weight: 0.32 kg
Volume: 0.559 L
EAN: 5702423147335
Pressure Detection Element: Diaphragm
Pressure Connection Size: 1/4"
Pressure Connection Standard: ISO 228-1
Pressure Connection Type: G
Pressure Connection Gender: Male
China RoHS Compliance: Yes
EEE Category: 5 (Small equipment, any external dimension ≤50 cm)
Electrical Connection: Rubber cable gland
Cable Size: 6–14 mm
EN 60947 Electrical Characteristics:
-
Insulation Voltage: 400 V
-
Pollution Degree: 3
-
Rated Impulse Voltage: 4 kV
-
Short-Circuit Protection, Fuse: 16 A
EN 60947 Cable Characteristics:
-
Cord with ferrule: 0.5–1.5 mm²
-
Cord without ferrule: 0.7–2.5 mm²
-
Solid/Stranded: 0.75–2.5 mm²
EU RoHS Compliance: Yes
EU RoHS Exemption Clause: No
Differential Pressure (Max): 6 bar / 87 psi
Differential Pressure (Min): 1.8 bar / 26 psi
In Scope of WEEE: Yes
Contains Batteries: No
Contact Rating:
-
AC15: 4 A, 440 V
-
AC1: 10 A, 440 V
-
AC3: 6 A, 440 V
-
DC13: 12 W, 220 V
-
LR: 36 A, 240 V / 48 A, 120 V
Contact Function: SPDT
Protection Class: IP30
NEMA Protection Class (~): 1
Max Test Pressure: 30 bar / 435 psig
Max Operating Pressure: 30 bar / 435 psig
Approvals: CCC, CE, CMIM, EAC, LLC CDC EURO-TYSK, LVD, PZH, RINA, China RoHS, UKCA, c UL us UL873, CS C22.2
Ambient Temperature Range: -40 °C to 65 °C (-40 °F to 149 °F)
Ambient Temperature Note: 80 °C / 176 °F for max 120 min
Product Name/Description: Pressure Switch
REACH Candidate List Substances: Lead (CAS 7439-92-1)
Regulation Range: 8–28 bar / 116–406 psig
Reset Function: Automatic
SCIP File No.: b1323c86-8856-44cc-b1c6-6849abe37ee4
Type: KPI38
UK RoHS Compliance: Yes
UL Approval File Name: E31024
Product Accessories: Key accessories
Product Group: Switches and Thermostats
Pressure Switch Purpose / Application:
Pressure switches are devices that open/close electrical contacts, trigger alarms, or operate protection circuits when the system pressure reaches a set value. The KPI38 model is specifically designed for medium/high pressure applications, typically in the 8–28 bar range.
