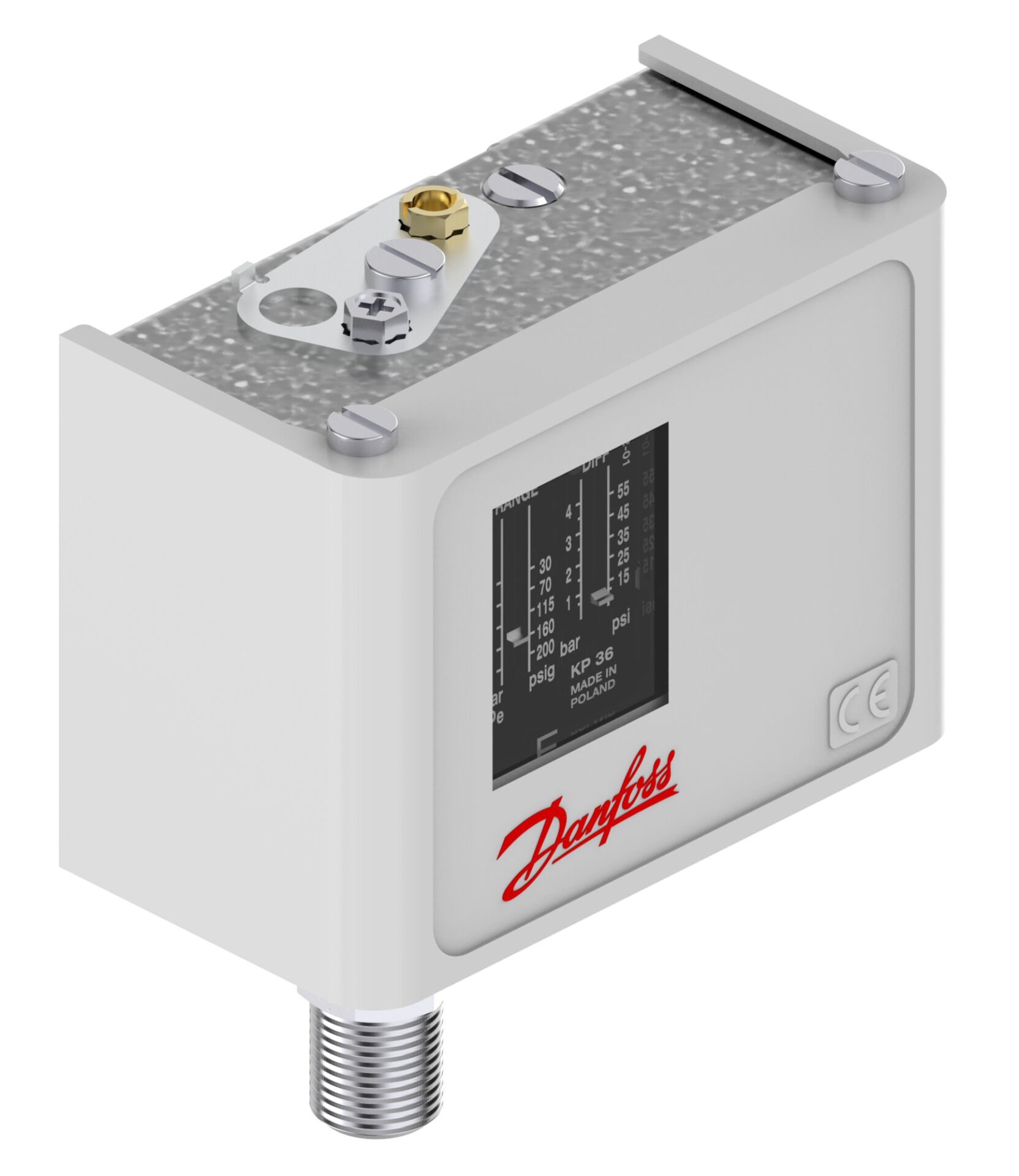

Danfoss KP36 2-14 Bar Pressure Switch
Danfoss KP36 2-14 Bar Pressure Switch

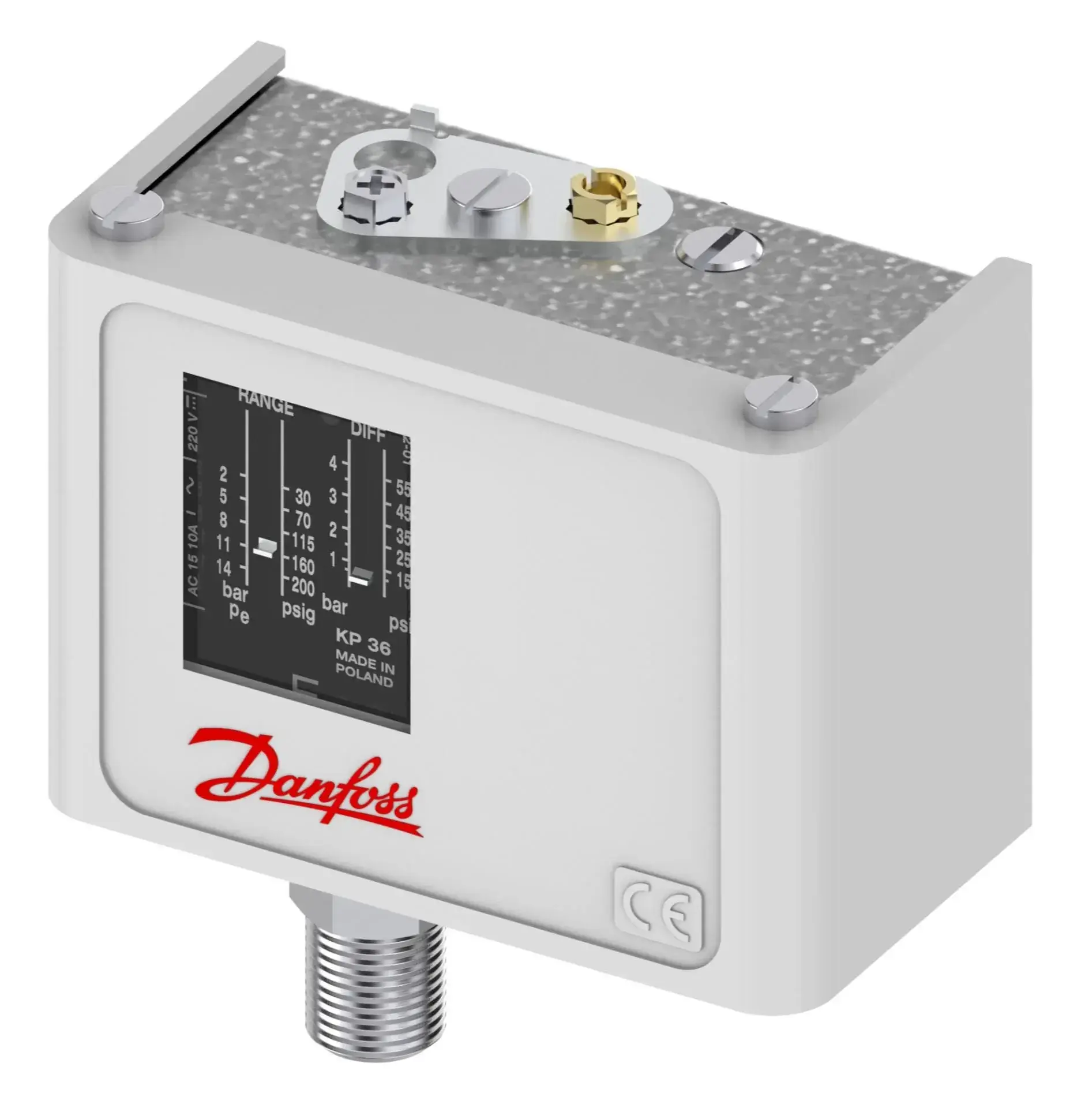

The Danfoss KP36 pressure switch (Prosestat) provides precise pressure control in the 2-14 bar range. Widely used in industrial applications, this pressure switch stands out for its high durability and reliable performance. With an IP30 protection rating and CE and RoHS certifications, it meets quality and safety standards.
Pressure Switch Product Details
-
Gross Weight: 0.334 Kg
-
Net Weight: 0.303 Kg
-
Volume: 0.565 Liter
Pressure Switch Specifications
-
Pressure Sensing Element: Bellows
-
Pressure Connection Size: 1/4"
-
Pressure Connection Standard: ISO 228-1
-
Pressure Connection Type: G
-
Pressure Connection Gender: Male
-
China RoHS Compliance: Yes
-
EEE Category: 5 small equipment (any external dimension ≤ 50 cm)
-
Electrical Connection: Rubber cable gland
-
Electrical Connection Size: 6–14 mm
-
EN 60947 Electrical Features:
-
Pollution degree: 3
-
Rated impulse voltage: 4 kV
-
Insulation: 400 V
-
Short circuit protection, fuse: 16 A
-
-
EN 60947 Cable Features:
-
Flexible cord with ferrule: 0.5–1.5 mm²
-
Flexible cord without ferrule: 0.7–2.5 mm²
-
Solid/stranded: 0.75–2.5 mm²
-
-
EU RoHS Compliance: Yes
-
EU RoHS Exemption Clause: No
-
Differential [bar] Max: 4 bar
-
Differential [bar] Min: 0.7 bar
-
Differential [psi] Max: 58 psi
-
Differential [psi] Min: 10 psi
-
In Scope of WEEE: Yes
-
In Scope of WEEE and Contains Batteries: No
-
Contact Rating:
-
AC15 = 10 A, 400 V
-
AC1 = 16 A, 400 V
-
AC3 = 16 A, 400 V
-
DC13 = 12 W, 220 V
-
LR = 112 A, 400 V
-
-
Contact Function: SPDT
-
Protection Class IP: IP30
-
NEMA Protection Class (~): 1
Pressure Switch
-
Maximum Test Pressure [bar] Pe: 22 bar
-
Maximum Test Pressure [psig]: 319 psig
-
Maximum Operating Pressure [bar]: 17 bar
-
Maximum Operating Pressure [psig]: 245 psig
-
Approvals:
-
CCC
-
CE
-
CMIM
-
EAC
-
LLC CDC EURO-TYSK
-
LVD
-
PZH
-
RINA
-
RMRS
-
RoHS China
-
c UL US UL353, CS C22.2
-
c UL US UL873, CS C22.2
-
UKCA
-
-
Ambient Temperature Range [°C] Max: 65 °C
-
Ambient Temperature Range [°C] Min: -40 °C
-
Ambient Temperature Range [°F] Max: 149 °F
-
Ambient Temperature Range [°F] Min: -40 °F
-
Ambient Temperature Note: 80 °C / 176 °F for max 120 min
-
Product Name Description: Pressure switch
-
Substances on REACH Candidate List: Lead (CAS no. 7439-92-1)
-
Regulation Range [bar] Pe Max: 14 bar
-
Regulation Range [bar] Pe Min: 2 bar
-
Regulation Range [psi] Pe Max: 203 psig
-
Regulation Range [psi] Pe Min: 29 psig
-
Reset Function: Automatic
-
Type: KP36
-
Product Accessories: Switch accessories
-
Product Description: Pressure switch
-
Product Group: Switches and thermostats
