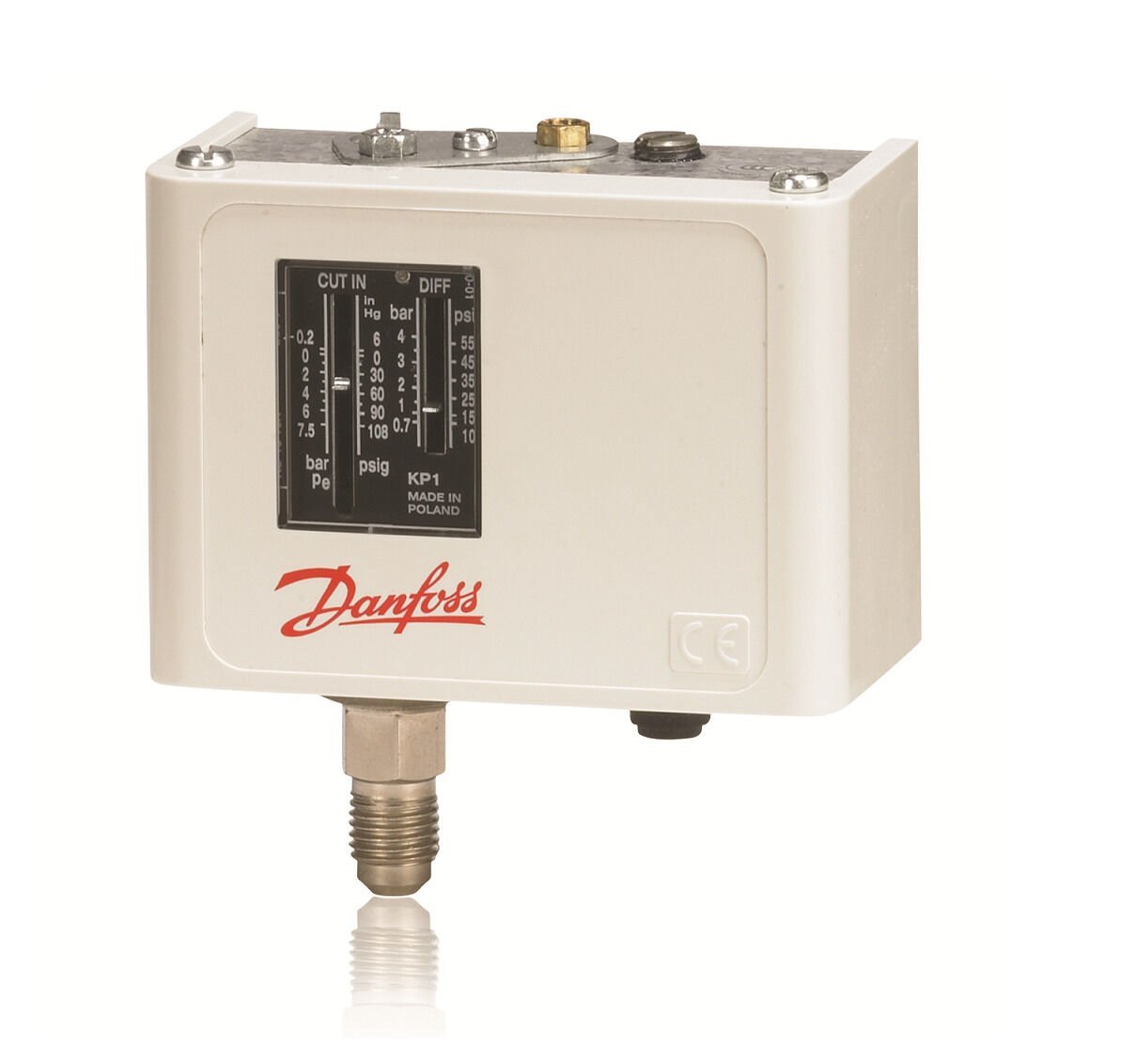

Danfoss KP1 Pressure Switch -0.2–7.5 bar
Pressure Switch (Prosestat)
Gross Weight: 0.384 kg
Net Weight: 0.349 kg
Volume: 1.281 L
EAN: 5702428011730
Pressure Detection Element: Diaphragm
Pressure Connection Size: 1/4"
Pressure Connection Standard: EN 1254-1
Pressure Connection Type: Solder, ODF
Pressure Connection Gender: Female
China RoHS Compliance: Yes
EEE Category: 5 (Small equipment, any external dimension ≤50 cm)
Electrical Connection: Rubber cable gland
Cable Size: 6–14 mm
EN 60947 Electrical Characteristics:
-
Insulation Voltage: 400 V
-
Pollution Degree: 3
-
Rated Impulse Voltage: 4 kV
-
Short-Circuit Protection, Fuse: 16 A
EN 60947 Cable Characteristics:
-
Cord with ferrule: 0.5–1.5 mm²
-
Cord without ferrule: 0.7–2.5 mm²
-
Solid/Stranded: 0.75–2.5 mm²
EU RoHS Compliance: Yes
EU RoHS Exemption Clause: No
Differential Pressure (Max): 4 bar / 58 psi
Differential Pressure (Min): 0.7 bar / 10 psi
In Scope of WEEE: Yes
Contains Batteries: No
Category: IV
Contact Rating:
-
AC15: 10 A, 400 V
-
AC1: 16 A, 400 V
-
AC3: 16 A, 400 V
-
DC13: 12 W, 220 V
-
LR: 112 A, 400 V
Contact Function: SPDT
Protection Class: IP44
NEMA Protection Class (~): 2
Max Test Pressure: 20 bar / 290 psig
Max Operating Pressure: 17 bar / 245 psig
Approvals: BV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, PED, PZH, RINA, RMRS, China RoHS, UKCA, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2
Ambient Temperature Range: -25 °C to 65 °C (-13 °F to 149 °F)
Ambient Temperature Note: 80 °C / 176 °F for max 120 min
Product Name/Description: Pressure Switch
REACH Candidate List Substances: Lead (CAS 7439-92-1)
Regulation Range: -0.2 bar to 7.5 bar / 6 inHg – 108 psig
Reset Function: Automatic
SCIP File No.: b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP File Product Name: KP/KPI Pressure Switch
Refrigerants Compatible With:
R113, R1234yf, R1234yz, R1234ze(E), R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454C, R455A, R507A, R513A, R515B
Type: KP1
UK RoHS Compliance: Yes
UL Approval File Names: E31024, MH27572
UL Approved Refrigerants:
R113, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A, R515B
Oil Compatibility: Oil-free applications
Oil-Free Refrigerants: R134a, R513A, R515B
Product Accessories: Key accessories
Product Group: Switches and Thermostats
