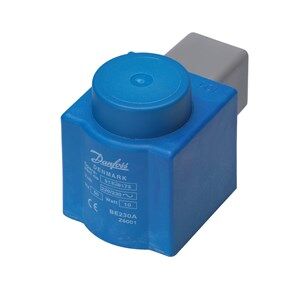

DANFOSS BOBİN 018F6176 220V

Danfoss Solenoid Coil BE230AS – 230V AC, IP20, EV Series Compatible

Danfoss Coil

The Danfoss BE230AS solenoid coil is a high-performance, long-life coil designed for Danfoss solenoid valves used in industrial and commercial applications. Operating at 230V AC, this model is fully compatible with multiple Danfoss valve series such as EV210B, EV220B, EV222B, and EV250B.

Thanks to its Class H insulated winding structure, it is resistant to high temperatures and operates safely within a temperature range of -40°C to +80°C. Its continuous duty design ensures reliable performance in systems with intensive usage.

Key Features

• Supply Voltage: 220–230 V AC / 50 Hz
• Power Consumption: 12 W – 22 VA
• Coil Type: BE230AS
• Actuator Size: 13.5 mm
• Protection Class: IP20
• Duty Type: Continuous duty
• Electrical Connection: DIN terminal (EN 175301-803 compatible)
• Terminal Size: 6.3 mm x 0.8 mm
• Color: Blue

Durability & Standards

• Winding Insulation: Class H (IEC 85)
• Design Standard: VDE 0580
• Compliance & Certifications: CE, EAC, UKCA, EN 60730-1
• Relative Humidity Resistance: 0% – 97% (non-condensing)

Compatible Danfoss Valve Series

• EV210B
• EV212B
• EV220B (6–22 / 15–50 / 65–100)
• EV222B
• EV224B
• EV227B
• EV250B
• EV251B

Technical Information

• Net Weight: 0.271 kg
• Gross Weight: 0.288 kg
• Volume: 0.266 L
• EAN: 5702428024402
• Spare Part No: 018F6176

Applications

• Industrial automation systems
• Water, air, and neutral fluid control
• Cooling and heating systems
• Danfoss solenoid valve applications
