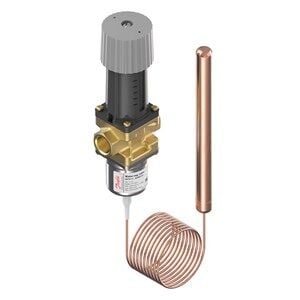

Danfoss AVTA 15 25-65 THERMOSTATIC VALVE 003N2162
THERMOSTATIC VALVE
Gross weight: 1.674 kg
Net weight: 1.344 kg
Volume: 4.07 L
EAN: 5702423004157
THERMOSTATIC VALVE
Flow direction indicator: Embossed one-way arrow
Fluid: Neutral fluid
Fluid temperature range [°C] [Max]: 130 °C
Fluid temperature range [°C] [Min]: -25 °C
Fluid temperature range [°F] [Max]: 266 °F
Fluid temperature range [°F] [Min]: -13 °F
Opening configuration: Opens with rising sensor temperature
Serviceable: Water valve spare parts
Connection size [inch]: 1/2
Connection internal/external: Internal
Connection standard: ISO 228-1
Connection type: G
China RoHS compliance: Yes
Cv value [gal/min]: 2.2 gal/min
Equipment: Bracket
EU RoHS compliance: Yes with exemptions
EU RoHS exemption clause: 6(b), 6(c)
Differential pressure [bar] [Max]: 10 bar
Differential pressure [bar] [Min]: 0 bar
Differential pressure [psi] [Max]: 145 psi
Differential pressure [psi] [Min]: 0 psi
Body material: Brass
In scope of WEEE and contain batteries: No
Capillary tube fitting size [inch]: 3/4
Capillary tube fitting internal/external: Internal
Capillary tube fitting standard: ISO 228-1
Capillary tube fitting type: G
Capillary tube length [mm]: 2000 mm
Capillary tube length [inch]: 78 3/4 in
Kv value [m³/h]: 1.9 m³/h
Max. sensor temperature [°C]: 90 °C
Max. sensor temperature [°F]: 194 °F
Max. test pressure [bar] Pe: 25 bar
Max. test pressure [psig]: 362.6 psig
Max. operating pressure [bar]: 16 bar
Max. operating pressure [psig]: 232 psig
Approvals: EAC, LLC CDC TYSK, PED, RoHS, RoHS China
Orifice size [mm]: 15 mm
Orifice size [inch]: 3/5 in
Product description: Thermo-operated water valve
REACH candidate list substances: Lead (CAS no. 7439-92-1)
SCIP file no.: d0092edb-0ce7-409a-9808-fda08274cc60
Sensor size (Ø x L) [inch]: 23/32 x 8 1/4 in
Sensor size (Ø x L) [mm]: 18 x 210 mm
Max. pressure in sensor [bar]: 25 bar
Max. pressure in sensor [psig]: 362.6 psig
Temperature range [°C] [Max]: 65 °C
Temperature range [°C] [Min]: 25 °C
Temperature range [°F] [Max]: 149 °F
Temperature range [°F] [Min]: 77 °F
Type: AVTA 15
UK RoHS compliance: Out of scope
Load type: Universal
Equivalent product: 003N5052
Product accessories: General accessories, Water valve accessories
Product group: Water regulating valves
