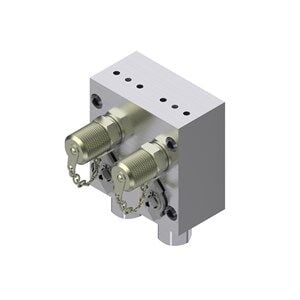

DANFOSS TEST VALFİ MBV5000-1211

DANFOSS TEST VALVE

Gross Weight: 0.864 Kg
Net Weight: 0.8 Kg
Volume: 1.11 L

Danfoss Test Valve Specifications:

• Pressure Range (Pi) [bar]: 0–120 bar (standard), 0–180 bar (with oil)

• Pressure Connection Size: 1/4"

• Pressure Connection Standard: DIN 3852‑E

• Connection Type: G (female)

• Thread Standard: ISO 228‑1

• Shock Absorber: No

• EU RoHS Compliance: Out of scope

• Number of Inlets: 2

• Maximum Number of Outlets: 2

• MiniMess Included: Yes

• Approvals: EAC, LLC CDC EURO‑TYSK, RoHS

• Ambient Temperature Range: -20 °C to 120 °C (-4 °F to 248 °F)

• Test Pressure Connection Size: 16 x 2

• Test Pressure Connection Type: M

• Test Function: Separate

• Outlet Connection Type: Flange

• Type: MBV 5000

• Description: MBV5000-1211

• Product Group: Shut-off and regulating valves
