Danfoss 060G5600 MBS 3300 TRANSMİTTER

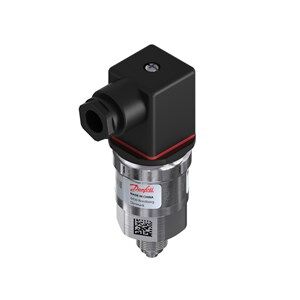

Danfoss MBS 3300 060G5600 Pressure Transmitter

The Danfoss MBS 3300 060G5600 is a “seamed gauge” type pressure transmitter providing reliable and precise pressure measurement within the range of −1.00 to +1.50 bar. It features a 4–20 mA output, allowing easy integration with standard control systems. Its electrical connection is an angular connector (EN 175301‑803‑A) with a Pg 11 cable gland, providing flexible installation options. The G ½″ threaded pressure connection and compact body make it ideal for applications requiring both space efficiency and reliable pressure measurement.

Operating Conditions

• Ambient Temperature: −40 °C to +100 °C (−40 °F to 212 °F)

• Fluid Temperature: up to +125 °C (257 °F) for some models

• Maximum Overpressure: 12 bar

• Pressure Range: −1.00 to +1.50 bar (−14.5 to 21.76 psi)

• Response Time: ~4 ms

• Resistant to vibration, shock, and harsh marine environments

Mechanical & Electrical Specifications

• Pressure Connection: G ½″, HEX 27 mm, Male, EN 837, Sealed Gauge

• Electrical Connection: Angular connector, Pg 11, Male/Female, EN 175301‑803-A

• Supply Voltage: 9–32 V DC

• Output Signal: 4–20 mA

• Protection Class: IP65

Accuracy & Performance

• Typical Accuracy: ±0.5 % FS

• Maximum Accuracy: ±1 % FS

• Linearity (BFSL): ±0.5 % FS

Compliance & Certifications

• ATEX: Ex ec IIA T4 Gc

• EU RoHS: Yes

• China RoHS: Yes

• UK RoHS: Yes

• WEEE: In scope, no batteries

• REACH Candidate Substance: Lead (CAS 7439-92-1)

Weight & Volume

• Gross Weight: 0.208 kg

• Net Weight: 0.186 kg

• Volume: 0.379 L

• EAN: 5702423255061

Additional Information

• Type: MBS 3300

• Product Group: Sensors

• Product Code: MBS 3300-8431-A6AB08-0

• Output Signal Clipping: Low 3.6 mA, High 22.4 mA
