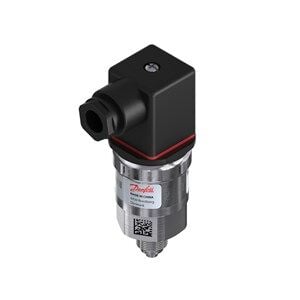

Danfoss 060G3039 MBS 33 TRANSMİTTER

Danfoss MBS 33 060G3039 Pressure Transmitter is a high-accuracy sensor operating in a 0–4 bar absolute pressure range with a 4–20 mA output. It provides reliable measurement in industrial systems with a typical accuracy of ±0.3 % FS. The device operates on a 10–30 V DC supply, allowing low-power operation. Its electrical connection is via a DIN plug and Pg 9, compliant with EN 175301‑803‑A standards, providing easy installation.

The transmitter features a G ½″ threaded pressure connection, capable of withstanding overload pressures up to approximately 8 bar. It can operate in ambient temperatures from −40 °C to +85 °C, offering resistance to temperature fluctuations, vibration, and external influences. With an IP65 protection rating, it is suitable for outdoor environments. ATEX-certified versions are available for hazardous areas. It is suitable for a wide range of applications including industrial, process control, HVAC, and monitoring of gas and liquid pressures.

Specifications:

• Gross weight: 0.208 kg

• Net weight: 0.186 kg

• Volume: 0.405 L

• EAN: 5702423030668

• Supply: +Pin 1 / −Common Pin 2

• Fluid temperature range: −40 to 85 °C

• Maximum overload pressure: 8 bar

• Pressure range: 0–4 bar (absolute)

• Pressure connection: G ½″, HEX 27 mm, male, EN 837

• Maximum supply voltage: 32 V DC

• Minimum supply voltage: 9 V DC

• Maximum supply current: 28 mA

• Accuracy: typical ±0.3 % FS, max ±0.8 % FS

• Linearity (BFSL) ±0.2 % FS

• Electrical connection: Angular connector, Pg 9, EN 175301‑803‑A

• IP rating: IP65

• ATEX approval: Ex ec IIA T4 Gc

• Response time: max 4 ms

• Output signal: 4–20 mA

• Product type: MBS 33

• International product number: 5702423030668
