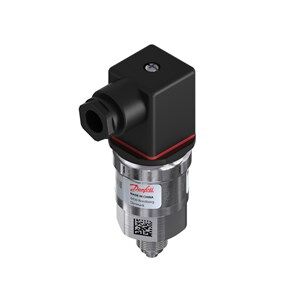

Danfoss 060G1923 MBS 3350 Transmitter

Danfoss 060G1923 MBS 3350 Pressure Transmitter is a sensor specially designed for marine applications, offering high accuracy and durability. Its integrated pulse-snubber feature provides excellent protection against pumping and liquid hammer, ensuring long-lasting and reliable operation. The body, made from AISI 316L stainless steel, provides outstanding corrosion resistance even in harsh marine environments. With an IP65 protection rating, it is resistant to external factors. It is preferred for applications requiring precise and fast pressure measurement due to its typical ±0.5 % accuracy and 4 ms response time.

Transmitter Specifications:

• Gross Weight: 0.18 kg

• Net Weight: 0.157 kg

• Volume: 0.42 L

• EAN: 5702423163687

Electrical Connections:

• • Supply: Pin 1

• • Common: Pin 2

• Electrical connection: Angular connector

• Connection size: Pg 11

• Connector type: Male and Female

• Electrical standard: EN 175301-803-A

Fluid Temperature Range:

• Max: 125 °C (257 °F)

• Min: -40 °C (-40 °F)

Pressure Ratings:

• Max Overload: 8 bar

• Pressure Range: 0 – 4 bar (0 – 58.02 psi)

• Pressure Connection Size: 1/4"

• Connection Standard: DIN 3852-E / ISO 1179-2 (Form E)

• Connection Type: G, Male

• Pressure Reference: Gauge (relative)

Power Supply:

• Max: 32 V DC

• Min: 9 V DC

Accuracy and Response:

• Maximum Accuracy ±FS: 1 %

• Typical Accuracy ±FS: 0.5 %

• BFSL Nonlinearity ±FS: 0.5 %

• Response Time: Max 4 ms

• Low Clip Level: 3.6

• High Clip Level: 22.4

• Output Signal: Current (4–20 mA)

Environmental & Compliance:

• Protection Class: IP65

• Marine and ATEX Approved: ATEX Ex ec IIA T4 Gc

• EU RoHS & UK RoHS Compliant

• China RoHS Compliant

• WEEE Scope: Yes

• Self-Safe: No

• Operating Temperature: -40 °C to 100 °C (-40 °F to 212 °F)

• Medium Temperature: -40 °C to 125 °C (-40 °F to 257 °F)

• Materials: Stainless Steel AISI 316L
