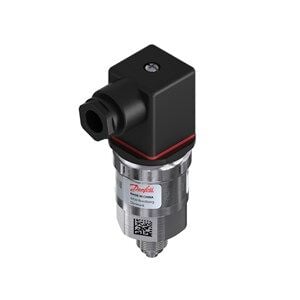

Danfoss 060G1123 MBS 3000 Transmitter

Danfoss MBS 3000 060G1123 Pressure Transmitter

The Danfoss MBS 3000 060G1123 Pressure Transmitter provides precise and reliable pressure measurement in industrial systems, operating within a 0–4 bar range with a 4–20 mA output. Its compact and robust body, G ¼″ threaded connection, and angled Pg 9 connector ensure easy installation. The ambient temperature range is –40 °C to +85 °C, making it suitable for harsh field conditions. With a typical accuracy of ±0.5 %, it offers high measurement precision. Its IP65 protection class ensures resistance against external factors. The transmitter is also ideal for applications requiring fast and accurate measurement due to its ±1 % maximum tolerance and approximately 4 ms response time.

Weight & Volume

• Gross Weight: 0.174 kg

• Net Weight: 0.153 kg

• Volume: 0.405 L

• EAN: 5702423084067

Electrical Connections

• Supply: Pin 1 (+)

• Common: Pin 2 (–)

• Signal Output: 4–20 mA

Operating Conditions

• Fluid Temperature Range: –40 °C to +85 °C (–40 °F to 185 °F)

• Maximum Overpressure: 24 bar (348 psi)

• Pressure Range: 0–4 bar (0–58 psi)

• Threaded Pressure Connection: G ¼″, HEX 27 mm, Male, EN 837, Gauge (relative)

Electrical Specifications

• Supply Voltage: 9–32 V DC

• Electrical Connection: Angular connector, Pg 9, Male/Female, EN 175301-803-A

• Output Signal: Current, 4–20 mA

• Maximum Response Time: 4 ms

Performance & Accuracy

• Typical Accuracy: ±0.5 % FS

• Maximum Accuracy: ±1 % FS

• Linearity BFSL: ±0.5 % FS

• IP Rating: IP65

• ATEX Approval: Ex ec IIA T4 Gc

Compliance & Standards

• EU RoHS: Yes (with exemptions)

• China RoHS: Yes (exceeds limitations)

• WEEE: In scope, no batteries

• REACH Candidate Substance: Lead (CAS 7439-92-1)

• UK RoHS: Yes

Additional Information

• Type: MBS 3000

• Product Group: Sensors

• Description: MBS 3000-1611-A1AB04-0
