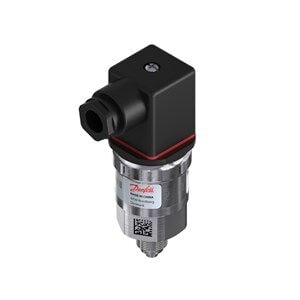

Danfoss 060G1121 MBS 3000 Transmitter

Danfoss MBS 3000 (060G1121) Pressure Transmitter

The Danfoss MBS 3000 (060G1121) pressure transmitter provides reliable pressure measurement in industrial processes, with a range of –1.00 to +15.00 bar (relative pressure) and a 4–20 mA output. It features a G ¼″ threaded connection, Pg 9 cable entry connector, and IP65-rated housing, offering easy installation and environmental durability. It operates stably in ambient temperatures from –40 °C to +85 °C and is suitable for variable field conditions. With a typical accuracy of ±0.5 % FS, it can be used in applications requiring precise measurement.

Transmitter Specifications

• Gross Weight: 0.174 kg

• Net Weight: 0.153 kg

• Volume: 0.405 L

• EAN: 5702423075553

Electrical Connection

• + Supply: Pin 1

• – Common: Pin 2

• Electrical Connection Type: Angular connector

• Electrical Connector Size: Pg 9

• Electrical Connector Gender: Male/Female

• Electrical Connector Standard: EN 175301-803-A

• Supply Voltage (DC) Max: 32 V

• Supply Voltage (DC) Min: 9 V

Pressure & Mechanical Data

• Pressure Range: –1 to +15 bar (–14.5 to 217.56 psi)

• Overpressure Max: 96 bar (1392 psi)

• Pressure Connection Size: 1/4″

• Pressure Connection HEX: 27 mm

• Pressure Connection Standard: EN 837

• Pressure Connection Type: G

• Pressure Male/Female: Male

• Pressure Unit Reference: Gauge (relative)

Fluid & Ambient Conditions

• Fluid Temperature Range Max: 85 °C (185 °F)

• Fluid Temperature Range Min: –40 °C (–40 °F)

• Ambient Temperature Range Max: 85 °C (185 °F)

• Ambient Temperature Range Min: –40 °C (–40 °F)

• Media Temperature Compensation Range Max: 80 °C (176 °F)

• Media Temperature Compensation Range Min: 0 °C (32 °F)

Performance

• Typical Accuracy: ±0.5 % FS

• Maximum Accuracy: ±1 % FS

• Non-linearity BFSL ±FS: 0.5 %

• Maximum Response Time: 4 ms

• Output Signal: Current

• Output Signal Range: 4–20 mA

• High Clipping Level: 22.4

• Low Clipping Level: 3.6

Compliance & Certification

• Protection Class: IP65

• Approval: ATEX Ex ec IIA T4 Gc

• China RoHS Compliance: Yes, exceeds limitations

• EU RoHS Compliance: Yes, with exemptions

• UK RoHS Compliance: Yes

• WEEE Scope: Yes

• Self-Safe: No

• Embedded Diaphragm: No

• REACH Candidate List Substance: Lead (CAS 7439-92-1)

Product Details

• Model: MBS 3000

• Product Group: Sensors

• Description: MBS 3000-8911-A1AB04-0

• International Product Number: 5702423075553
