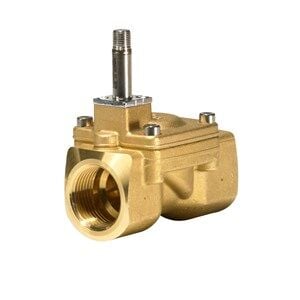

Danfoss 042U4042 1'' SOLENOİD VALF EV220A

SOLENOID VALVE

Gross Weight: 1.022 kg
Net Weight: 0.96 kg
Volume: 1.295 L
EAN: 5702423106660

SOLENOID VALVE
Flow Direction: Single flow
Flow Direction Indicator: Embossed one-way arrow
Fluid Group: 1
Fluid Temperature Range [°C]: Max 60 °C, Min -10 °C
Fluid Temperature Range [°F]: Max 140 °F, Min 14 °F
Fluid Tolerance Comments: Neutral fluids
Recommended Fluids: Water, Brine, Oil, Air
Actuator: A
Actuator Size: 9 mm (0.35 in)
Actuator System [mm]: 9 mm
Application: Open
Serviceable: Solenoid valve spare parts
Connection Size [in]: 1
Connection Type (Internal/External): Internal
Connection Material: Brass
Connection Standard: ISO 228-1
Connection Type: G
China RoHS Compliance: Out of scope
Cv Value [gal/min]: 8.1 gal/min
EU RoHS Compliance: Yes, with exemptions
EU RoHS Exemption Clause: 6(c)
Differential Pressure [bar]: Max 16 bar, Min 0.3 bar
Differential Pressure [psi]: Max 232 psi, Min 4.35 psi
Function: NC (Normally Closed)
Body Material: Brass
In Scope of WEEE and Contains Batteries: No
Kv Value [m³/h]: 7 m³/h
Maximum Fluid Viscosity [cSt]: 50 cSt
Maximum Test Pressure [bar]: 24 bar
Maximum Test Pressure [psig]: 348 psig
Maximum Operating Pressure [bar]: 16 bar
Maximum Operating Pressure [psig]: 232 psig
Orifice Size [mm]: 22 mm
Orifice Size [in]: 7/8 in
Maximum Ambient Temperature [°C]: 50 °C
Maximum Ambient Temperature [°F]: 122 °F
Part Program Name: EV220A
Product Name Description: Solenoid valve
Substances in REACH Candidate List: Lead (CAS no. 7439-92-1)
Sealing Material: NBR
Estimated Opening Time, Water [ms]: 200 ms
Estimated Closing Time, Water [ms]: 500 ms
Type: EV220A
Type Designation: EV220A 22
UK RoHS Compliance: Out of scope
Number of Ways: 2/2
Operation: Servo-controlled (diaphragm)
Feature Description: EV220A 22B G 1N NC000
Product Accessories: Solenoid valve accessories
Product Group: Solenoid valves
