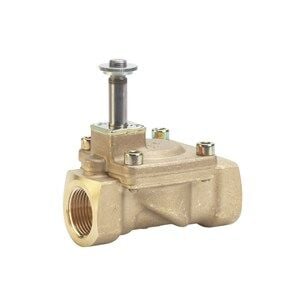

Danfoss 042U4032 1'' SOLENOİD VALF EV220A
Solenoid Valve
-
Gross Weight: 0.8 Kg
-
Net Weight: 0.762 Kg
-
Volume: 0.891 Liter
-
EAN: 5702423106639
Specifications:
-
Flow Direction: Single flow
-
Flow Direction Indicator: Embossed one-way arrow
-
Fluid Group: 1
-
Fluid Temperature Range: -10 °C to 60 °C (14 °F to 140 °F)
-
Fluid Compatibility Notes: Neutral fluids
-
Recommended Fluids: Water, Brine, Oil, Air
-
Actuator: A
-
Actuator Size: 9 mm (0.35 in)
-
Actuator System: 9 mm
-
Application: Open
-
Serviceable: Solenoid valve spare parts
-
Connection Size: 3/4 in
-
Connection Type (Internal/External): Internal
-
Connection Material: Brass
-
Connection Standard: ISO 228-1
-
Connection Type: G
-
China RoHS Compliance: Out of scope
-
Cv Value: 8.1 gal/min
-
EU RoHS Compliance: Yes, with exemptions (6(c))
-
Differential Pressure (Max/Min): 16 bar / 0.3 bar (232 psi / 4.35 psi)
-
Function: NC (Normally Closed)
-
Body Material: Brass
-
In Scope of WEEE & Contain Batteries: No
-
Kv Value: 7 m³/h
-
Max Fluid Viscosity: 50 cSt
-
Max Test Pressure: 24 bar (348 psig)
-
Max Operating Pressure: 16 bar (232 psig)
-
Orifice Size: 18 mm (3/4 in)
-
Max Ambient Temperature: 50 °C (122 °F)
-
Part Program Name: EV220A
-
Product Description: Solenoid valve
-
REACH Candidate List Substances: Lead (CAS no. 7439-92-1)
-
Seal Material: NBR
-
Estimated Opening Time (Water): 200 ms
-
Estimated Closing Time (Water): 500 ms
-
Type: EV220A
-
Type Designation: EV220A 18
-
UK RoHS Compliance: Out of scope
-
Number of Ways: 2/2
-
Operation: Servo-controlled (diaphragm)
-
Feature Description: EV220A 18B G 34N NC000
-
Product Accessories: Solenoid valve accessories
-
Product Group: Solenoid valves
