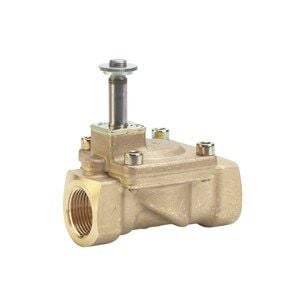

Danfoss 042U4031 3/4'' SOLENOİD VALF EV220A

SOLENOID VALVE

• Gross Weight: 0.806 kg

• Net Weight: 0.752 kg

• Volume: 0.892 L

• EAN: 5702423106622

Valve Characteristics:

• Flow Direction: Single flow

• Flow Direction Indicator: Embossed one-way arrow

• Fluid Group: 1

• Fluid Temperature Range: 0–100 °C (32–212 °F)

• Fluid Tolerance Comments: Neutral fluids

• Recommended Fluids: Water & brine

• Actuator: A

• Actuator Size: 9 mm (0.35 in)

• Actuator System: 9 mm

• Application: Open

• Maintenance: Solenoid valve spare parts

Connection:

• Connection Size: 3/4 in

• Connection Type: Internal

• Connection Material: Brass

• Connection Standard: ISO 228-1

• Connection Style: G

Electrical / Environmental Compliance:

• China RoHS Compliance: Out of scope

• EU RoHS Compliance: Yes, with exemptions (Clause 6(c))

• UK RoHS Compliance: Out of scope

• In Scope of WEEE and Contains Batteries: No

Performance:

• Cv Value: 8.1 gal/min

• Kv Value: 7 m³/h

• Max Differential Pressure: 16 bar (232 psi)

• Min Differential Pressure: 0.3 bar (4.35 psi)

• Max Operating Pressure: 16 bar (232 psi)

• Max Test Pressure: 24 bar (348 psi)

• Max Fluid Viscosity: 50 cSt

• Orifice Size: 18 mm (3/4 in)

Operation:

• Function: Normally Closed (NC)

• Working Method: Servo-controlled (diaphragm)

• Estimated Opening Time (Water): 200 ms

• Estimated Closing Time (Water): 500 ms

Material & Approvals:

• Body Material: Brass

• Seal Material: EPDM

• Approvals: PZH, WRAS

Part Program Name: EV220A
Type Designation: EV220A 18
Feature Description: EV220A 18B G 34E NC000
Product Accessories: Solenoid valve accessories
Product Group: Solenoid valves
