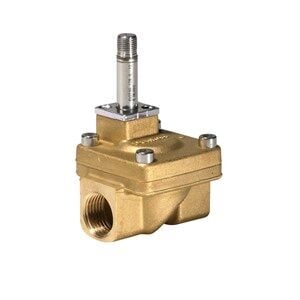

Danfoss 042U4021 1/2'' SOLENOİD VALF EV220A

Solenoid Valve

• Gross Weight: 0.562 kg

• Net Weight: 0.502 kg

• Volume: 0.893 L

• EAN: 5702423106561

Specifications:

• Flow Direction: Single flow

• Flow Direction Indicator: Raised one-way arrow

• Fluid Group: 1

• Fluid Temperature Range: 0–100 °C (32–212 °F), minimum –30 °C (–22 °F)

• Fluid Compatibility: Neutral fluids, recommended for water & brine

• Actuator: A, 9 mm (0.35 in)

• Application: Open

• Serviceable: Solenoid valve spare parts

• Connection Size: 1/2 in, internal

• Connection Material: Brass

• Connection Standard: ISO 228-1, type G

• RoHS Compliance: EU: Yes, with exemptions; China: Out of scope

• Cv Value: 2.9 gal/min

• Differential Pressure: 0.3–16 bar (4.35–232 psi)

• Function: NC (Normally Closed)

• Body Material: Brass

• Kv Value: 2.5 m³/h

• Maximum Fluid Viscosity: 50 cSt

• Maximum Test Pressure: 24 bar (348 psig)

• Maximum Operating Pressure: 16 bar (232 psig)

• Approvals: PZH, WRAS

• Orifice Size: 12 mm (1/2 in)

• Maximum Ambient Temperature: 50 °C (122 °F)

• Seal Material: EPDM

• Estimated Opening Time (water): 60 ms

• Estimated Closing Time (water): 300 ms

• Number of Ways: 2/2

• Operation: Servo-controlled diaphragm

• Type: EV220A (EV220A 12B G 12E NC000)

• Accessories: Solenoid valve accessories

• Product Group: Solenoid valves
