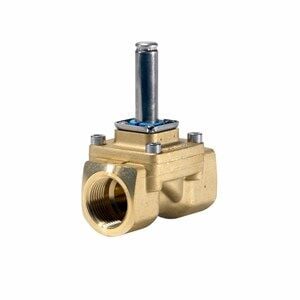

Danfoss 032U5256 1'' SOLENOİD VALF EV250B

Solenoid Valve

The EV250B solenoid valve is designed for reliable fluid control in heating, cooling, and industrial applications. It operates within a wide range of temperatures and pressures, and is compatible with technical and soft water.

Specifications:

• Gross Weight: 1.074 Kg

• Net Weight: 1.01 Kg

• Volume: 1.274 L

• EAN: 5702423179190

• Fluid Group: 1

• Fluid Temperature Range: -30 °C to 120 °C (-22 °F to 248 °F)

• Fluid Pressure Range: 0–10 bar (-30–120 °C), 0–4 bar (120–140 °C)

• Max Fluid Viscosity: 50 cSt

• Recommended Fluids: Technical & soft water, slightly abrasive fluids

• Actuator: B, 13.5 mm (0.53 in)

• Function: Normally Closed (NC)

• Flow Coefficient: Cv = 8.1 gal/min, Kv = 7 m³/h

• Body Material: DZR Brass

• Seal Material: EPDM

• Orifice Size: 22 mm (7/8 in)

• Connection Size & Type: 1 inch, internal thread (G), ISO 228-1

• Max Operating Pressure: 10 bar (145 psi)

• Max Test Pressure: 15 bar (217.5 psi)

• Ambient Temperature: Max 80 °C (176 °F)

• Estimated Opening Time (Water): 150 ms

• Estimated Closing Time (Water): 100 ms

• Compliance/Approvals: PZH, SINTEF, EU RoHS (with exemptions)

• Part Program Name: EV250B

• Type: EV250B 22

• Number of Ways: 2/2

• Operation: Assisted lift actuation

• Accessories: Solenoid valve accessories

• Product Group: Solenoid valves

Description:
The EV250B 22BD G 1E NC000 solenoid valve provides precise and reliable control of water or slightly abrasive fluids. It is suitable for high-demand systems requiring fast response, robust construction, and compatibility with standard solenoid coil actuators.
