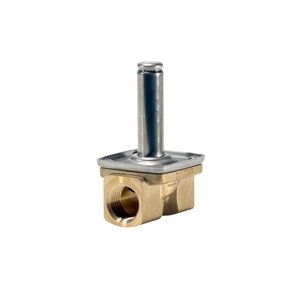

Danfoss 032U1252 1/2'' SOLENOİD VALF EV220B
Solenoid Valve
-
Gross Weight: 0.312 kg
-
Net Weight: 0.293 kg
-
Volume: 0.251 L
-
EAN: 5702423005741
Specifications:
-
Flow Direction: Single flow
-
Flow Direction Indicator: Embossed one-way arrow
-
Fluid Group: 1
-
Fluid Temperature Range: 0–100 °C (32–212 °F)
-
Fluid Compatibility: Neutral fluids
-
Recommended Fluids: Oil, compressed air, vacuum
-
Actuator: B
-
Actuator Size: 13.5 mm (0.53 in)
-
Actuator System: 13.5 mm
-
Package Quantity: 20 pcs per package
-
Application: Open
-
Maintenance: Solenoid valve spare parts
-
Connection Size: 1/2 inch, internal
-
Connection Material: Brass
-
Connection Standard: ISO 228-1
-
Connection Type: G
-
Flow Coefficient (Cv): 1.75 gal/min
-
Kv Value: 1.5 m³/h
-
Differential Pressure Range: 0.1–20 bar (1.45–290 psi)
-
Maximum Fluid Viscosity: 50 cSt
-
Maximum Test Pressure: 30 bar (435 psig)
-
Maximum Operating Pressure: 20 bar (290 psig)
-
Function: Normally Closed (NC)
-
Body Material: Brass
-
Seal Material: FKM
-
Orifice Size: 10 mm (3/8 in)
-
Maximum Ambient Temperature: 80 °C (176 °F)
-
Opening Time (water): 50 ms
-
Closing Time (water): 300 ms
-
Number of Ways: 2/2
-
Operation: Servo-controlled (diaphragm)
-
Approvals: DNVGL-CG-0339
-
Type: EV220B
-
Type Designation: EV220B 10
-
Feature Description: EV220B 10B G 12F NC000
-
Product Accessories: Solenoid valve accessories
-
Product Group: Solenoid valves
-
REACH Candidate Substances: Lead (CAS no. 7439-92-1)
